FIRE PITS

1. Make sure everything is shut off and that hose is removed from propane tank. Remove knob and valve cover.

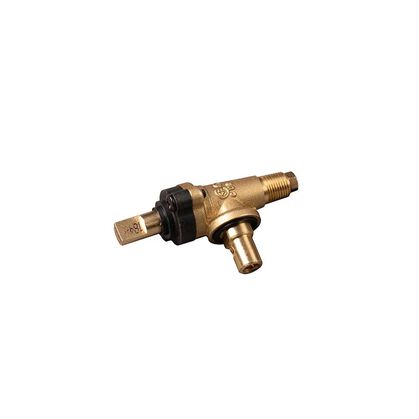

2. Remove valve from burner, unscrew from thermocouple wire, and disconnect electrode wire.
3. Once valve is removed from fire pit, drill the orifice with:

• Older fire pits (2021 & older) 1/8" drill bit
• Monetary (FP40) #37
• Newer fire pits (2022): GF18D and GF24D #30 drill bit
• Juniper (GF16) #31 drill bit
• Reassemble

SMOKEVAULT

1. If you haven’t assembled your smoker yet, remove the valve from the burner and use the specified drill to widen the valve’s orifice.

—

1. If your smoker is already assembled and has been used, make sure everything is turned off and disconnect the hose from your smoker.
2. Then lay the smoker on it’s back and remove the burner. This will give you access to the valve.
3. Drill valve’s orifice with a #51 drill bit.
4. Reassemble.

FLAT TOP

1. Remove the griddle, side shelf, then knobs.
2. Once you take off the shelf, take out the 2 screws on both sides.
3. Disconnect each igniter wire to pull off the cover that will house the manifold and valves.
4. Next, flip the silver faceplate down to view the manifold and valves.
5. To get the valve and manifold off of the face place, flip it back over and you will see a bezel and 2 screws for each valve. Take out these screws and place off the side with the bezel.
6. Please Note: When reassembling, make sure the black triangle on the bezel is at the top

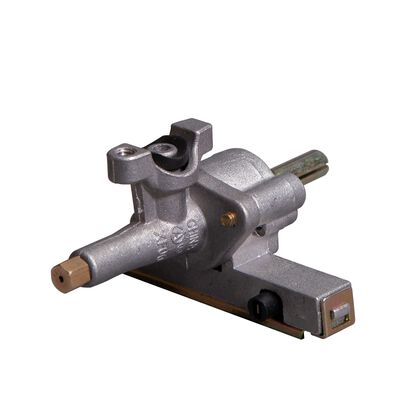

7. Once disconnected from the face plate, remove the valve from the manifold.
8. With the 2 screws removed it will free the valve from the manifold.
9. Drill out this orifice with a #54 drill bit for the FTG900, FTG600, and the FTG475. For the FTG475LC it will be a #52 drill bit.
